Trolley-Mounted Traffic Signals – 8 in. lights

TLD-1308

Trolley-Mounted Traffic Signals – 8 in. lights
Trolley-Mounted Traffic Signals – 8 in. lights
Trolley-Mounted Traffic Signals – 8 in. lights
Trolley-Mounted Traffic Signals – 8 in. lights

Trolley-Mounted Traffic Signals – 8 in. lights

TLD-1308

Availability

  • U.S.A
  • Canada
  • International

Applications

  • Ver-Mac Urban zones
  • Ver-Mac Bridge construction / repairs
  • Ver-Mac Secondary roads
Download Sales Sheet

Resource Center

Find a wealth of information for this product, from training to troubleshooting and more.

Product Description

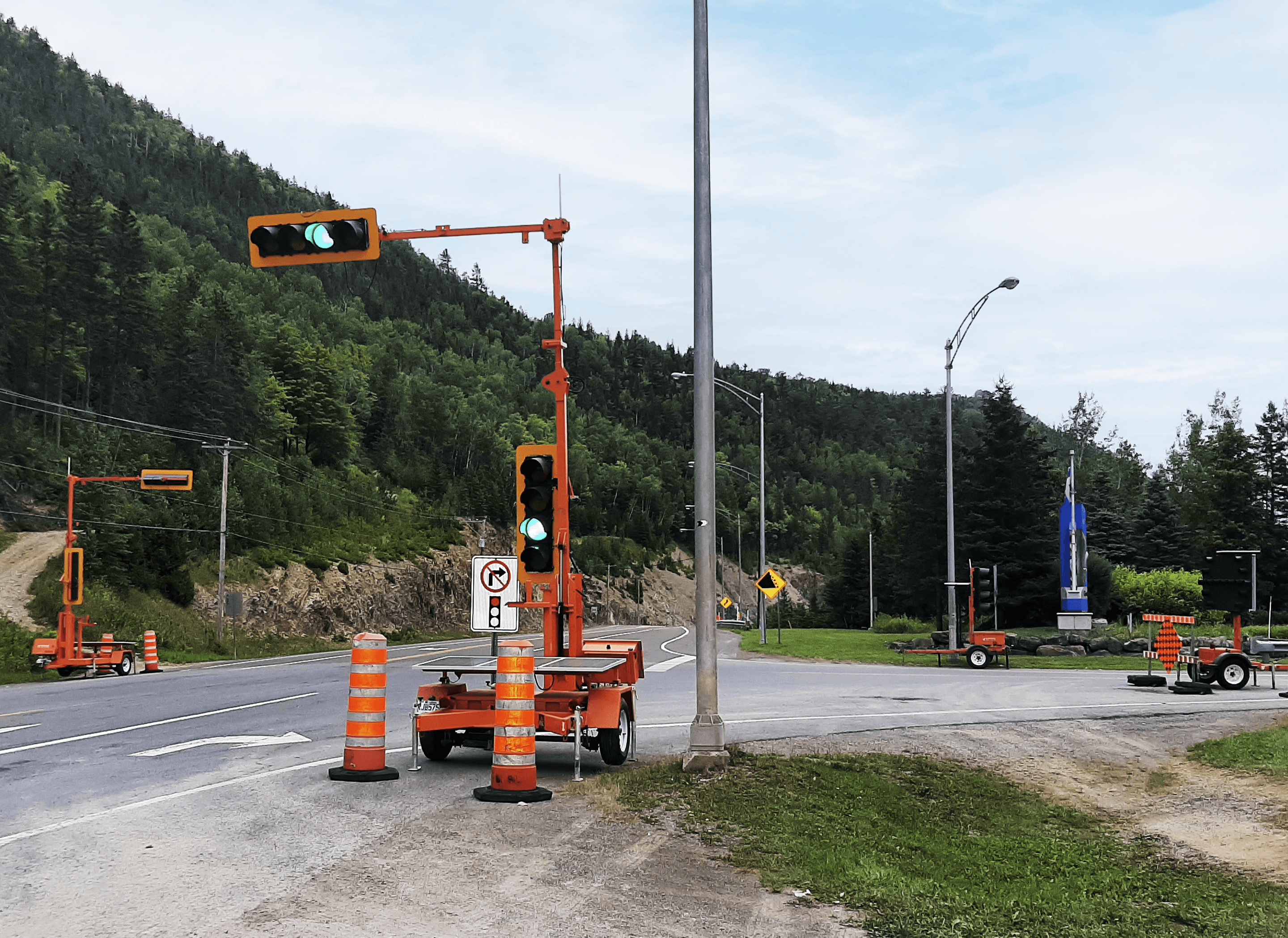

Robust and maintenance-free, our TLD-1308 Trolley-Mounted Traffic Signal can be used in a variety of configurations. Its high-performance radio communication system ensures efficient and responsive traffic management near the work zone.

Easy to program with our intuitive V-Touch TLD Controller, this single-head traffic signal features 8" (203 mm) diameter lights and is powered by two rechargeable batteries for added efficiency.


Features and Benefits

V-TOUCH CONTROLLER

FLEXIBLE

V-SWAP BATTERY SYSTEM (OPTION)

RADIO COMMUNICATION

MAXIMUM DISTANCE

MALFUNCTION MANAGEMENT

CONTROL MULTIPLE UNITS

EASY TO DEPLOY

ENVIRONMENTALLY FRIENDLY

VEHICLE DETECTION (OPTION)

PILOT CAR (OPTION)

REMOTE CONTROL (OPTIONS)

MIRROR MODE (OPTION)

ADVANCED WARNING SYSTEM (OPTION)

EMERGENCY PRE-EMPTION (OPTION)

V-TOUCH CONTROLLER

NEMA TS 5-compliant, this V-Touch Controller is the quickest and easiest to program on the market.

The V-Touch Controller walks you through each step to ensure proper setup and programming.

Easy-to-Use Touchscreen

  • Intuitive point-and-go icons
  • Real-time signal display
  • Large 7 in. (178 mm) LCD color graphic touchscreen

Manage in a Few Clicks

  • Easy pattern selection and configuration
  • Create, modify and save your traffic patterns
  • Schedule plans daily, weekly or monthly

Emergency Functionalities

  • Instant emergency control (red/red function)
  • Ability to send email/SMS alerts when something abnormal occurs

Show more

FLEXIBLE

Any unit can be a primary or secondary unit. No need to move them around.

Show more

V-SWAP BATTERY SYSTEM (OPTION)

Our traffic signals can be equipped with two 12-volt batteries.

The signal operates on one battery with an auxiliary battery backup.

Show more

RADIO COMMUNICATION

Ensures secure communication between units.

Show more

MAXIMUM DISTANCE

The maximum distance between units is up to 1 mile (1.6 km) line of sight.

Show more

MALFUNCTION MANAGEMENT

Our system monitors radio communication, conflicts, signal malfunction and low voltages.

Show more

CONTROL MULTIPLE UNITS

Ability to create traffic plans for up to 4 units at a single intersection. Adapts to different project applications.

Show more

EASY TO DEPLOY

Equipped with a telescopic mast for quick and easy deployment.

Show more

ENVIRONMENTALLY FRIENDLY

No polluting fuel emissions or unpleasant engine noise emitted.

Show more

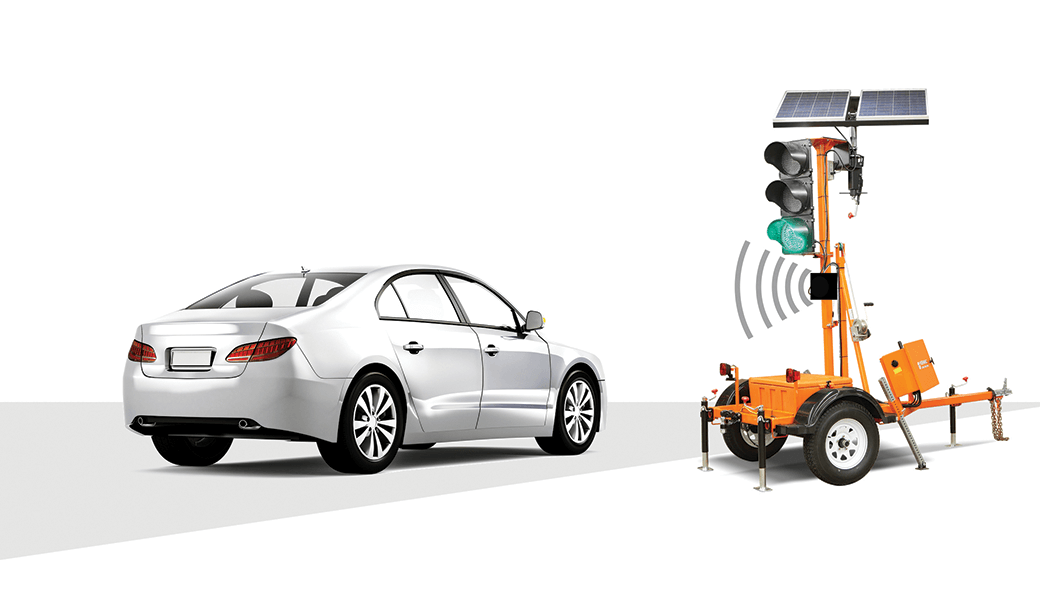

VEHICLE DETECTION (OPTION)

Increased Safety
The vehicle detection option increases work zone safety by automatically detecting vehicles and adjusting the green time. It is particularly useful when traffic is heavier on one side.

Customizable
Parameters are customizable to fit any work zone construction length.
When vehicles are detected, the green light can stay active up to the maximum preprogrammed time set by the user. The operator programs the minimum and maximum time, and the desired length of time for the extension.

Traffic signals can be programmed according to the time of day and rush hours.

How it Works

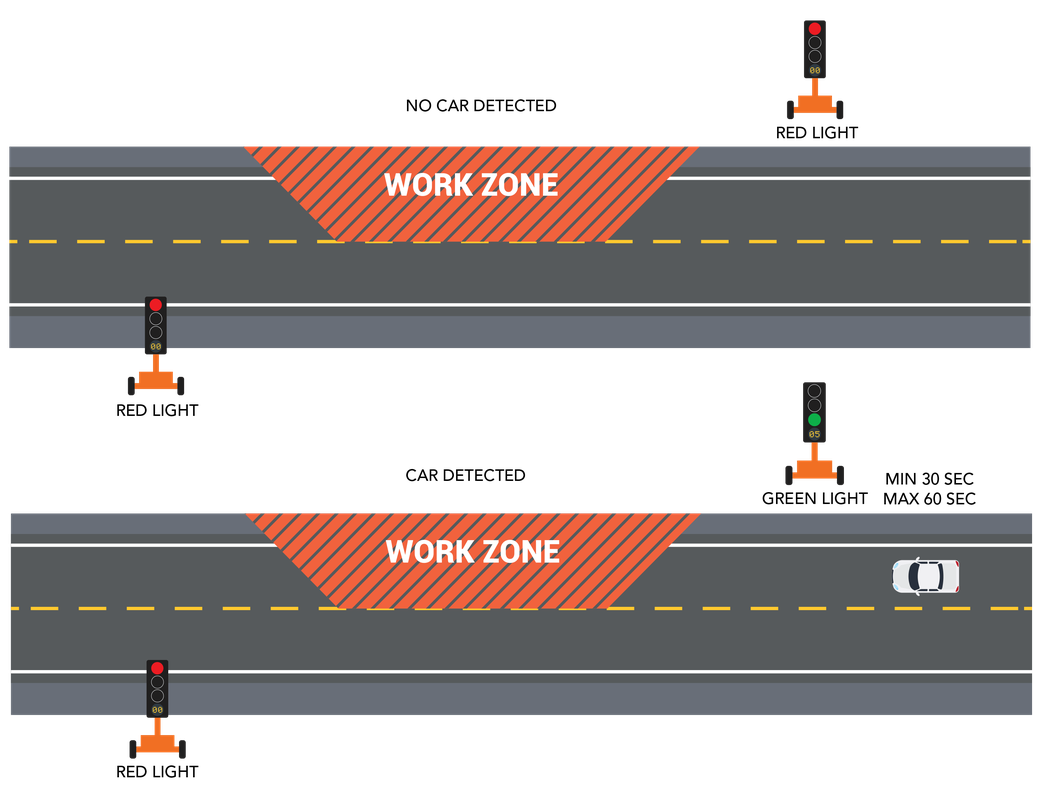

Vehicle detection is commonly used during rush hours. A green light can be programmed and 5 seconds can be added per detected car all the way up to the predetermined maximum time.

No Unnecessary Waiting Time
Have you ever been stopped at a traffic light for several minutes waiting for the countdown and not seeing any cars coming the other way? Frustrating, right? Vehicle detection solves this issue by automatically turning the light to green when a car is detected. No more unnecessary waiting time.

Show more

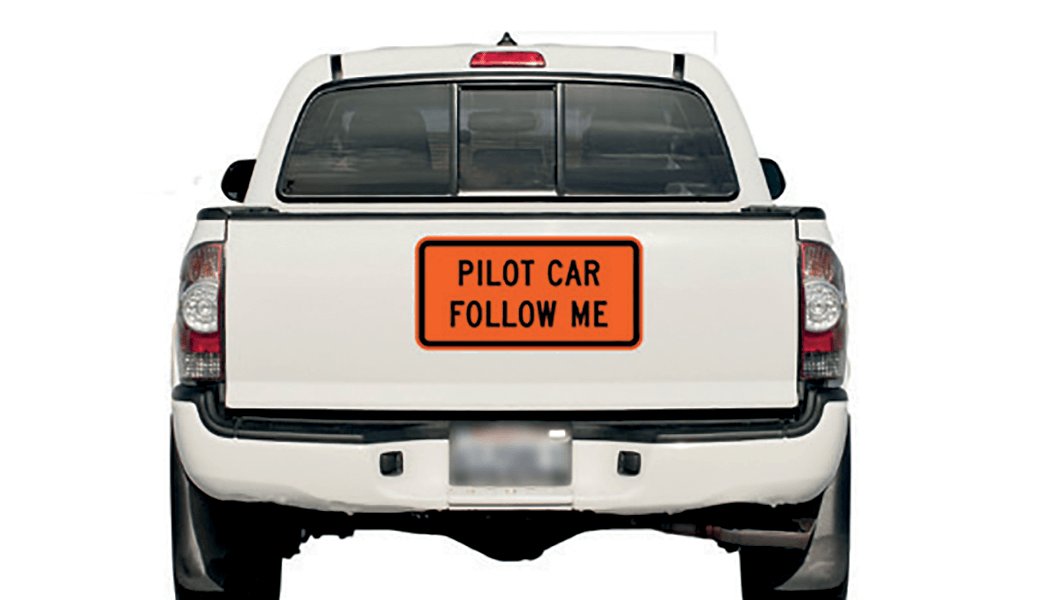

PILOT CAR (OPTION)

Typical Application
Pilot cars are mainly used in one-lane two-way work zones to guide traffic and keep their speeds within posted limits.

How it Works
The driver of the work zone pilot car waits for the vehicles to line up behind him/her and when ready, the driver presses the remote-control button to turn the light green. The preprogrammed sequence is then set in motion.

  • Vehicles follow the pilot car all the way to the end of the work zone.
  • The light stays green for as long as it is programmed to be and then goes back to red.
  • Vehicles exit the work zone and the pilot car driver repositions himself/herself in front of the new line of vehicles.
  • When ready, the same actions are repeated by the driver.

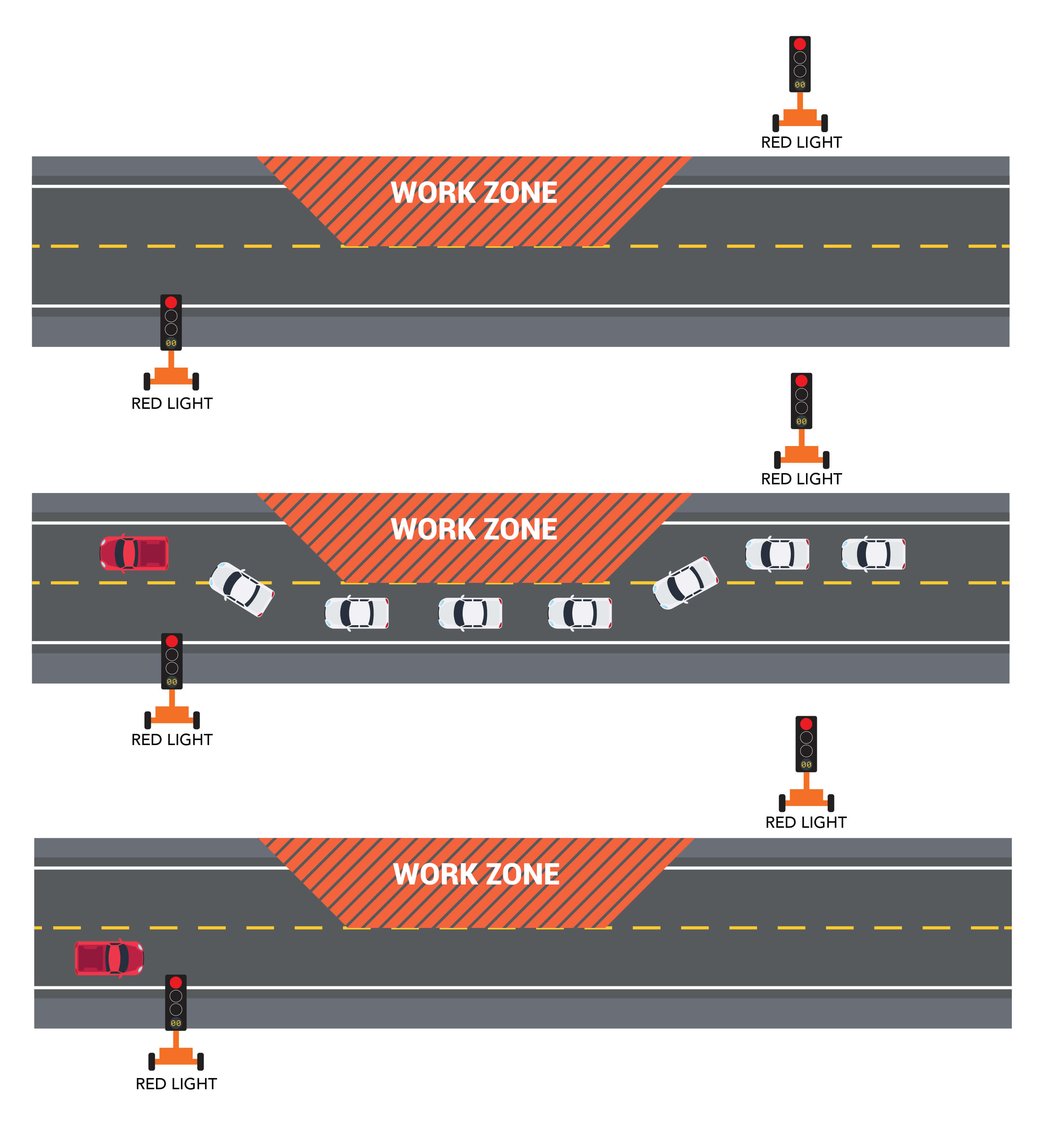

Operating the Lights
The times and settings are all preprogrammed including possible extension times for when there are long lines of vehicles. The lights will remain all red until the pilot car driver presses on the activation button to set the light he wants to turn green.

Show more

REMOTE CONTROL (OPTIONS)

Wireless Remote Control
The wireless remote control option allows you to control your units from up to 300 feet away.

You can be positioned in a strategic location and control the units according to the situation.

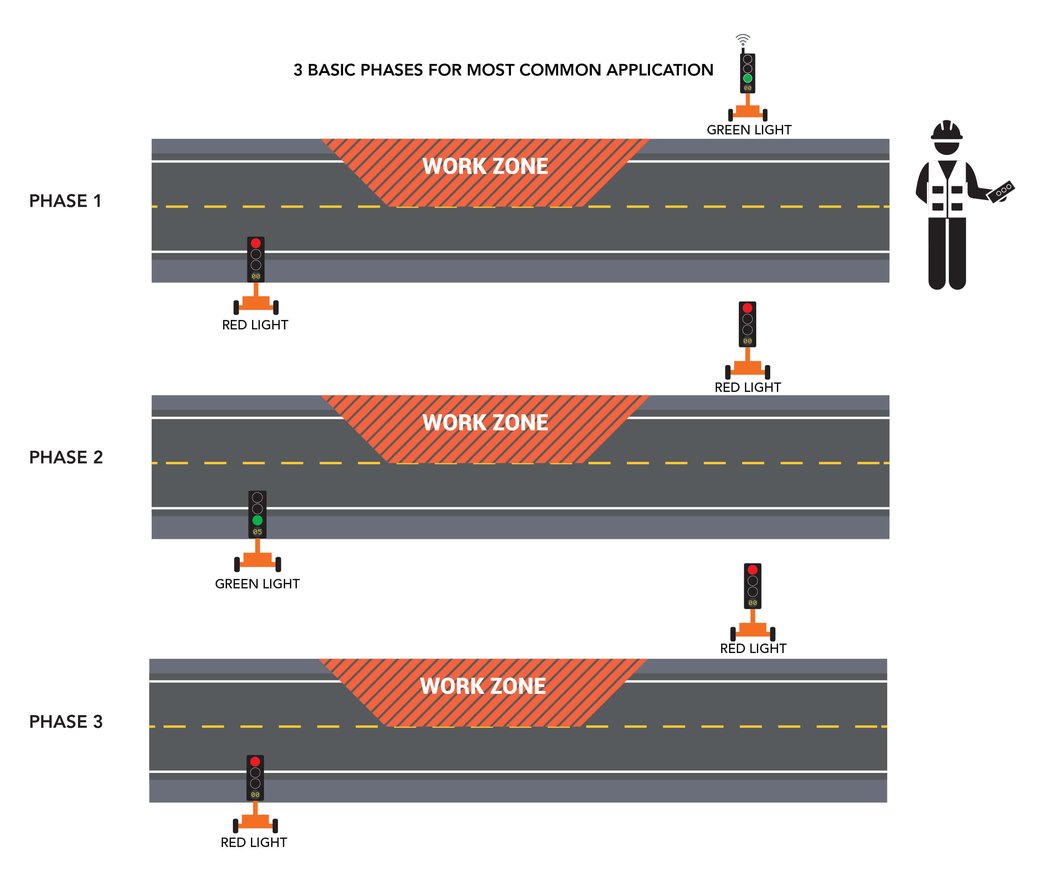

The remote control has three buttons which allow you to control two phases and full stop, where both units are red (all red).

It is also possible to program your own phases too:

  1. One side red and the other green
  2. One side green and the other side red
  3. Both units are red and all traffic is stopped.

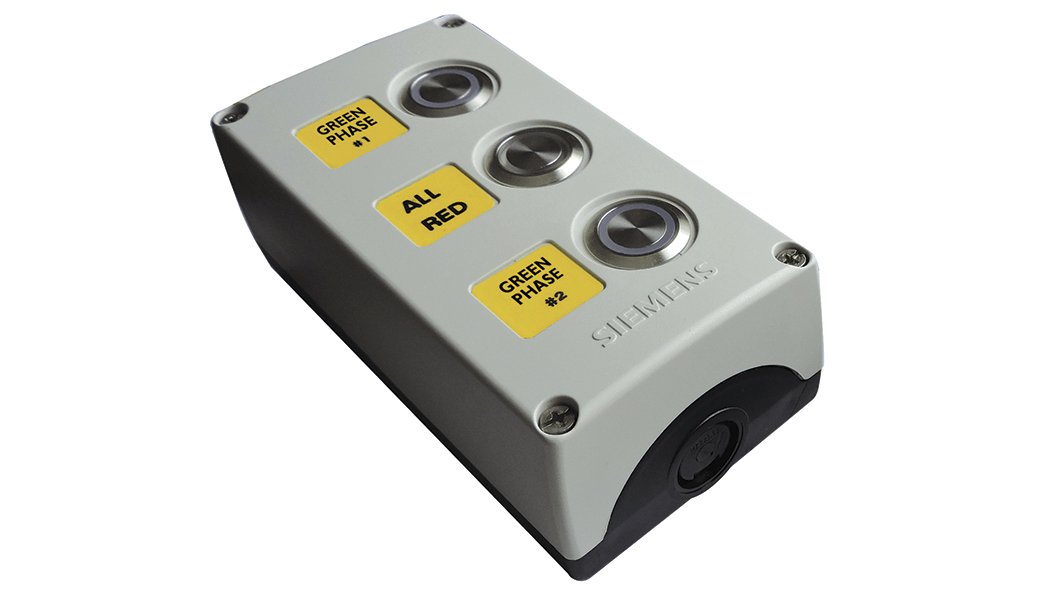

Wired Remote Control
This option allows you to stand about 30 feet away from the unit, off from the road.

The remote control has three buttons which allow you to control two phases and full stop, where both units are red (all red).

It is also possible to program your own phases too:

  1. One side red and the other green
  2. One side green and the other side red
  3. Both units are red and all traffic is stopped.

Typical Application:
Two-way road with one lane closed for work. A worker decides when the lights are red and when they are green, and changes them manually.

Show more

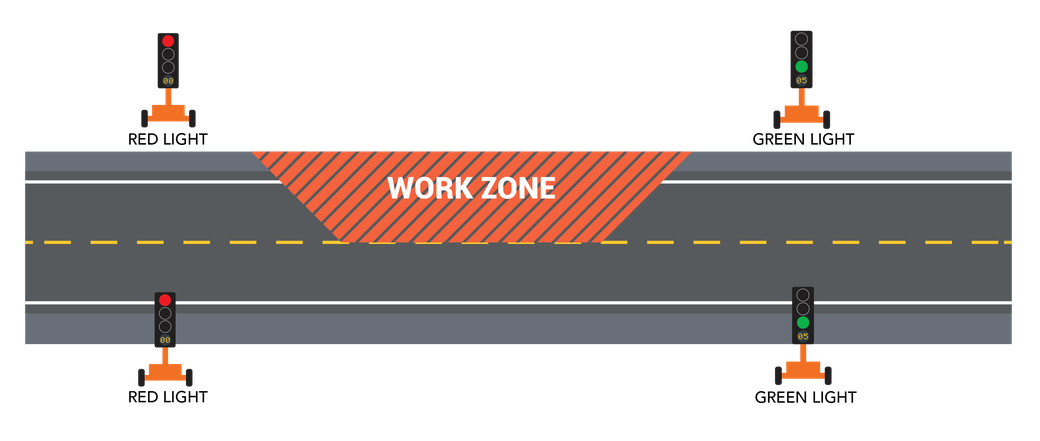

MIRROR MODE (OPTION)

Two Units Displaying the Same Information
Some states require to always have two traffic signal sets to improve safety. The mirror mode enables 2 side-by-side units to act in conformity with this local requirement by displaying the same information.

Increased Safety
Imagine a scenario where there is a long line of cars and trucks. When using only one traffic signal, the cars that are at the very end of the queue may not see what is going on, especially if the wait time is quite long.

The mirror mode, using two units (1 on each side of the road), improves work zone safety by ensuring that the drivers can see the units and information displayed at all times.

Show more

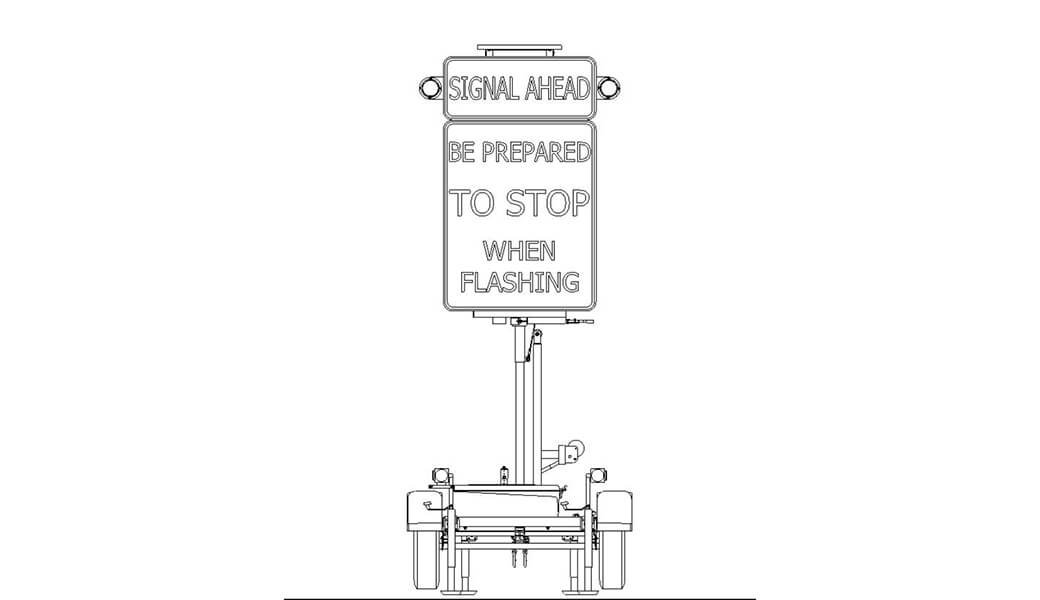

ADVANCED WARNING SYSTEM (OPTION)

The advanced warning system warns motorists of upcoming temporary traffic signals and indicates that the light is about to turn red, helping them reduce their speed and prepare to stop.

The advanced warning trailer comes with flashing beacons on each side of the sign to get motorists’ attention. The operator can set the pre-warning delay to adapt to the local situation and distance between the warning trailer and the traffic signal.

This product improves safety near work zones by providing clear indications to motorists.

Show more

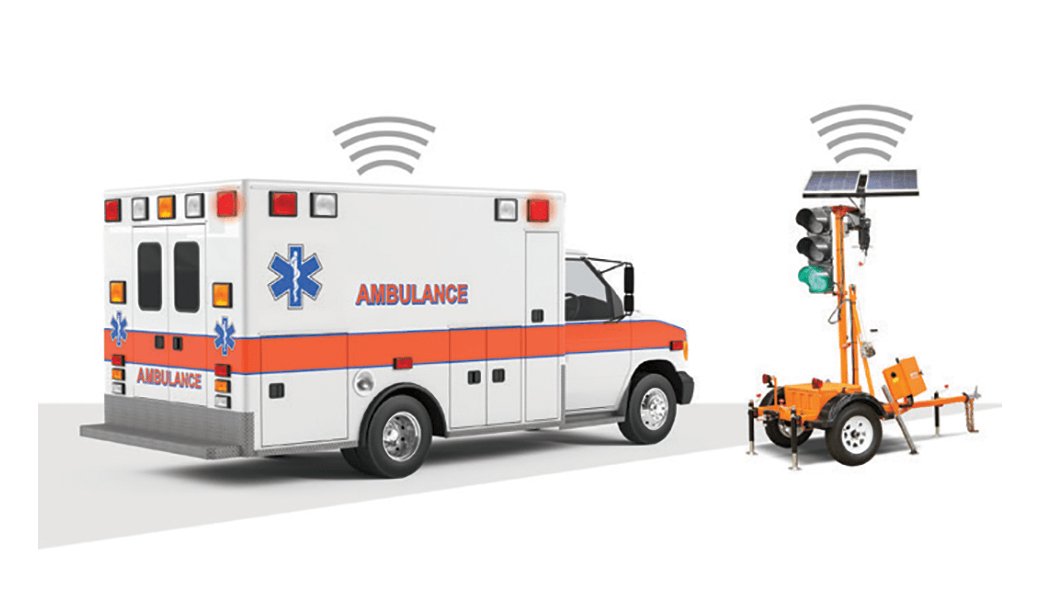

EMERGENCY PRE-EMPTION (OPTION)

This option is an emergency vehicle detector. When an emergency vehicle activates the system, the units will automatically favor the direction that the emergency vehicle is coming from to clear all traffic and give them priority.

How it Works
The signal is picked up by infrared detectors or sonar pulsation that is undetectable by individuals (the emergency vehicle and traffic signals must be equipped with the system). When the emergency signal is detected, all sequences and phases will be canceled and set to the emergency phase.

Applications

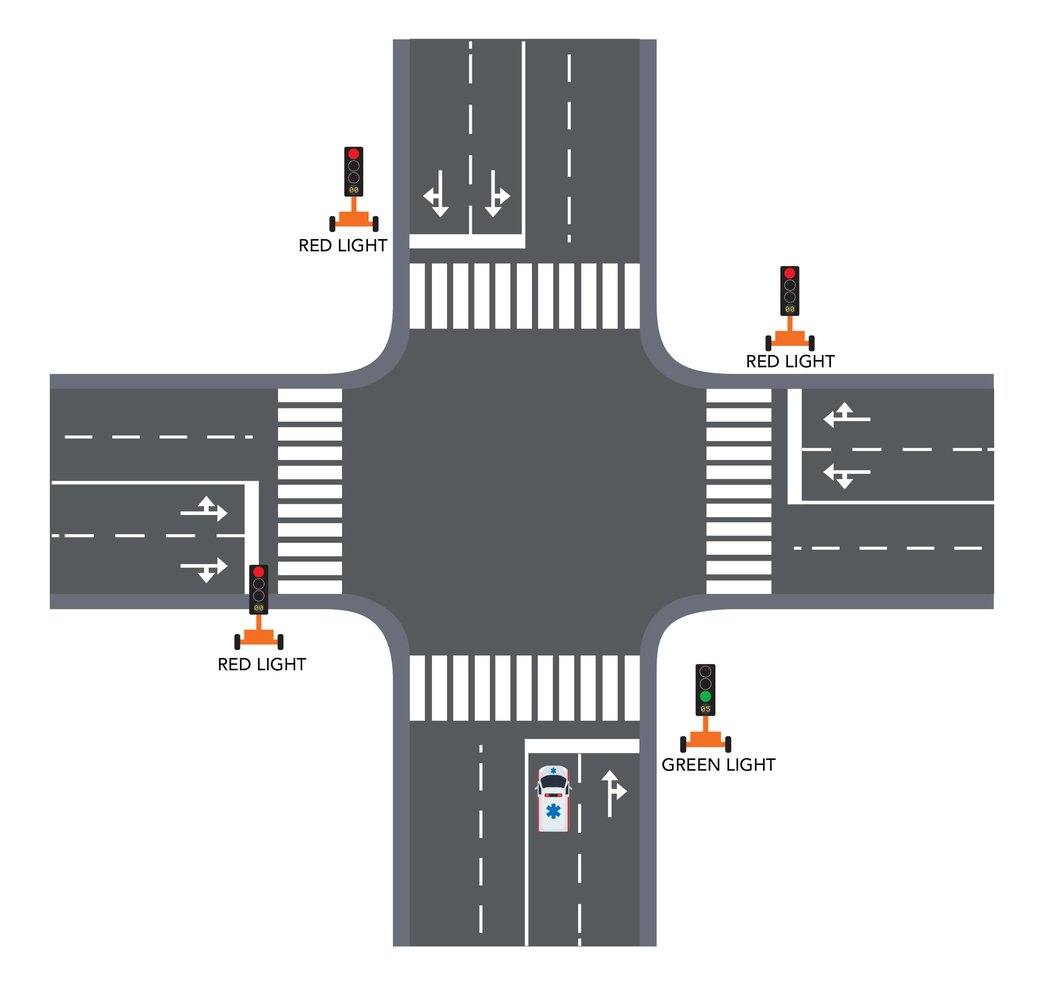

In a 4-way intersection, when the emergency signal is detected, all traffic signals will turn red, except for the unit where the emergency vehicle is approaching, which is automatically given priority.

Show more

Products Specifications for TLD-1308

TRAFFIC CONTROL PATTERN TYPES

DIMENSIONS AND WEIGHT

OPTIONS

WARRANTY

TRAFFIC CONTROL PATTERN TYPES

  • Access (one signal head)
  • Shuttle
  • Two-way
  • T-junction
  • Crossroads
  • Customizable for multi-directional installation

Show more

DIMENSIONS AND WEIGHT

  • Overall length: 40 in. (1027 mm)
  • Overall width: 23 in. (587 mm)
  • Traveling height: 90 in. (2297 mm)
  • Operating height: 132 in. (3364 mm)
  • Weight (approx.)*: 313 lbs (142 kg)

*Weight including batteries

Show more

OPTIONS

  • 12-volt batteries
  • Vehicle detection
  • Battery charger
  • Countdown display
  • Additional units

Other options are available to meet your needs.

Show more

WARRANTY

  • 1 year on complete trolleys
  • 2 years on electronic components manufactured by Ver-Mac

Show more
