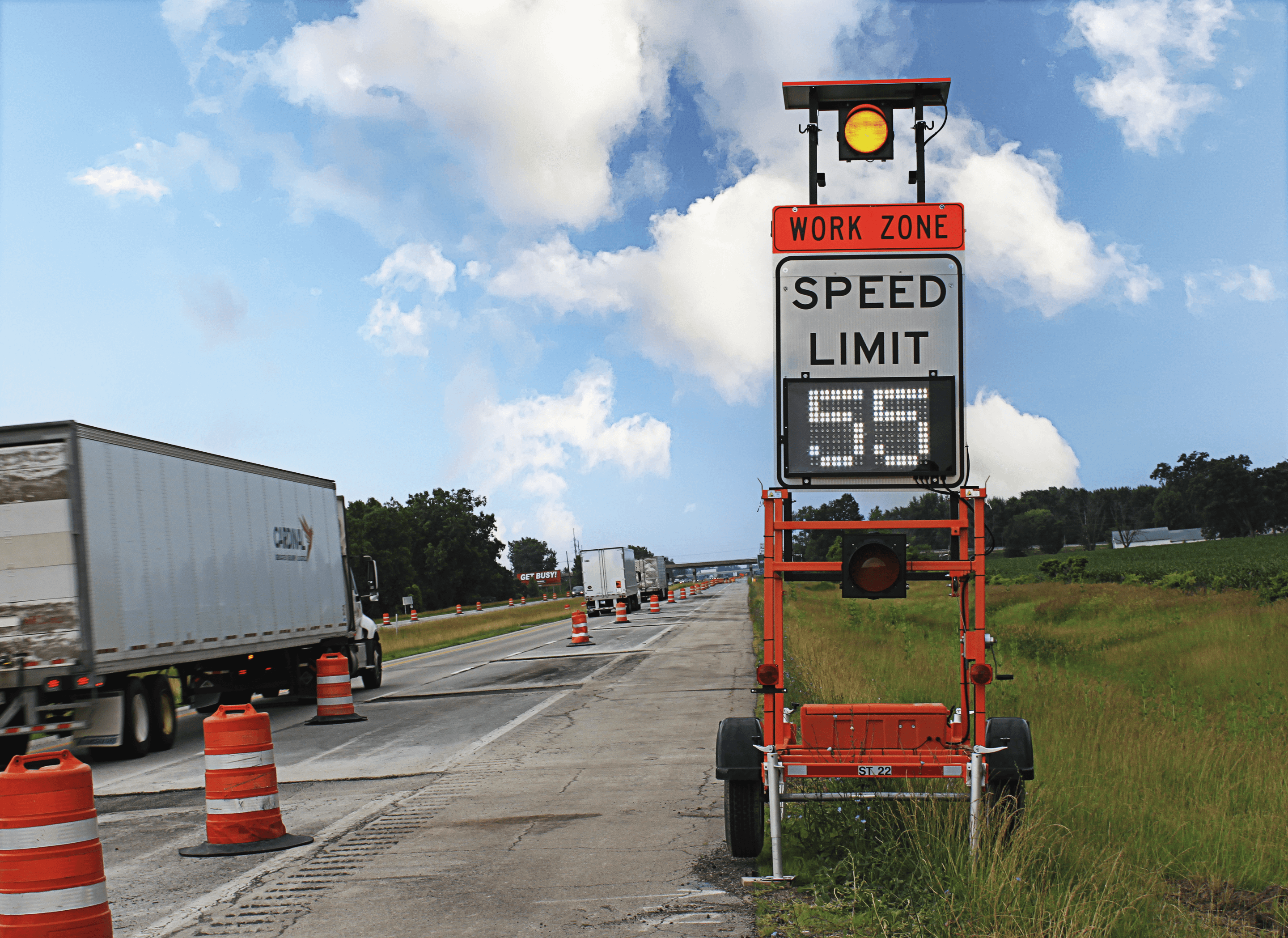

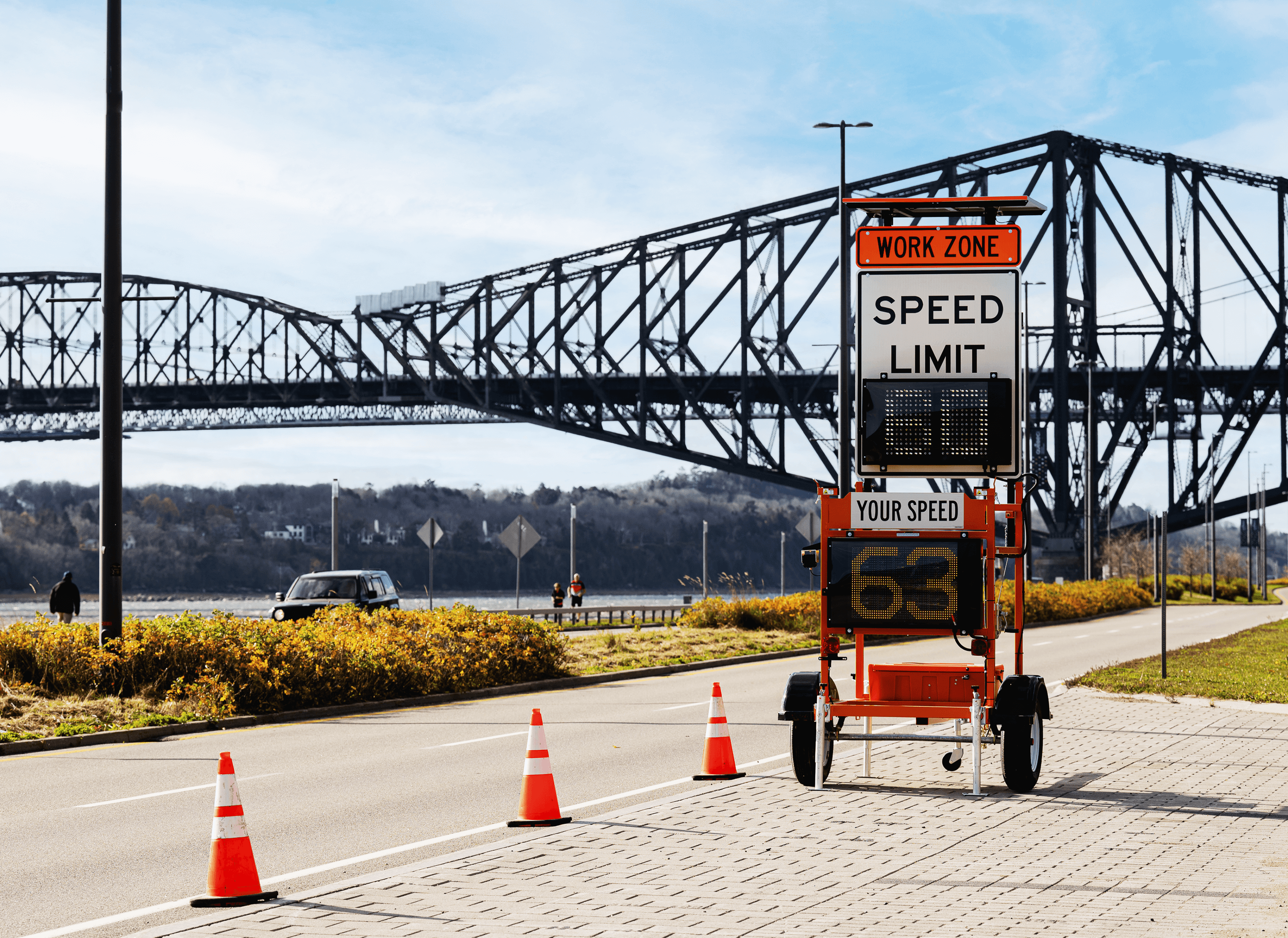

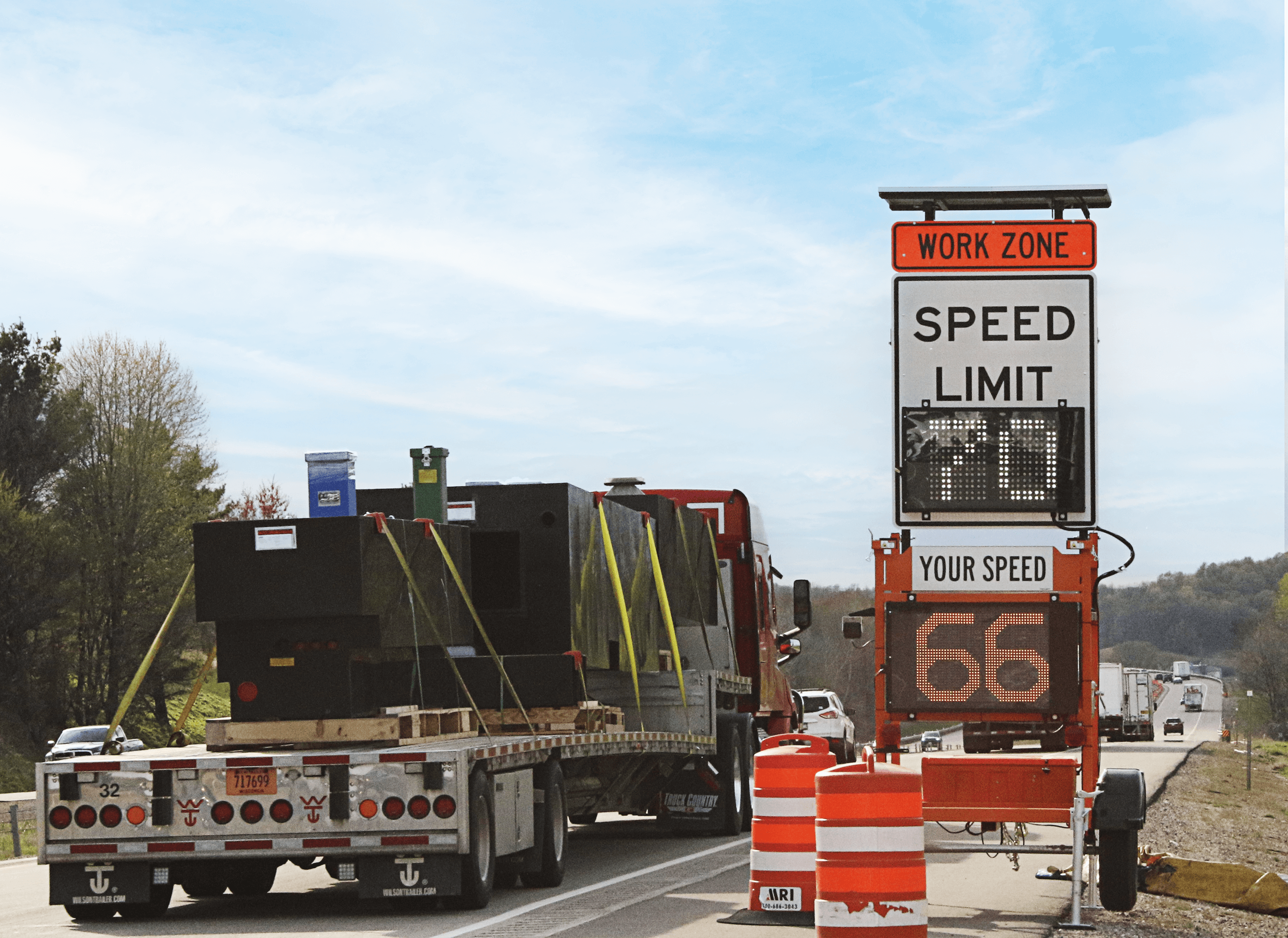

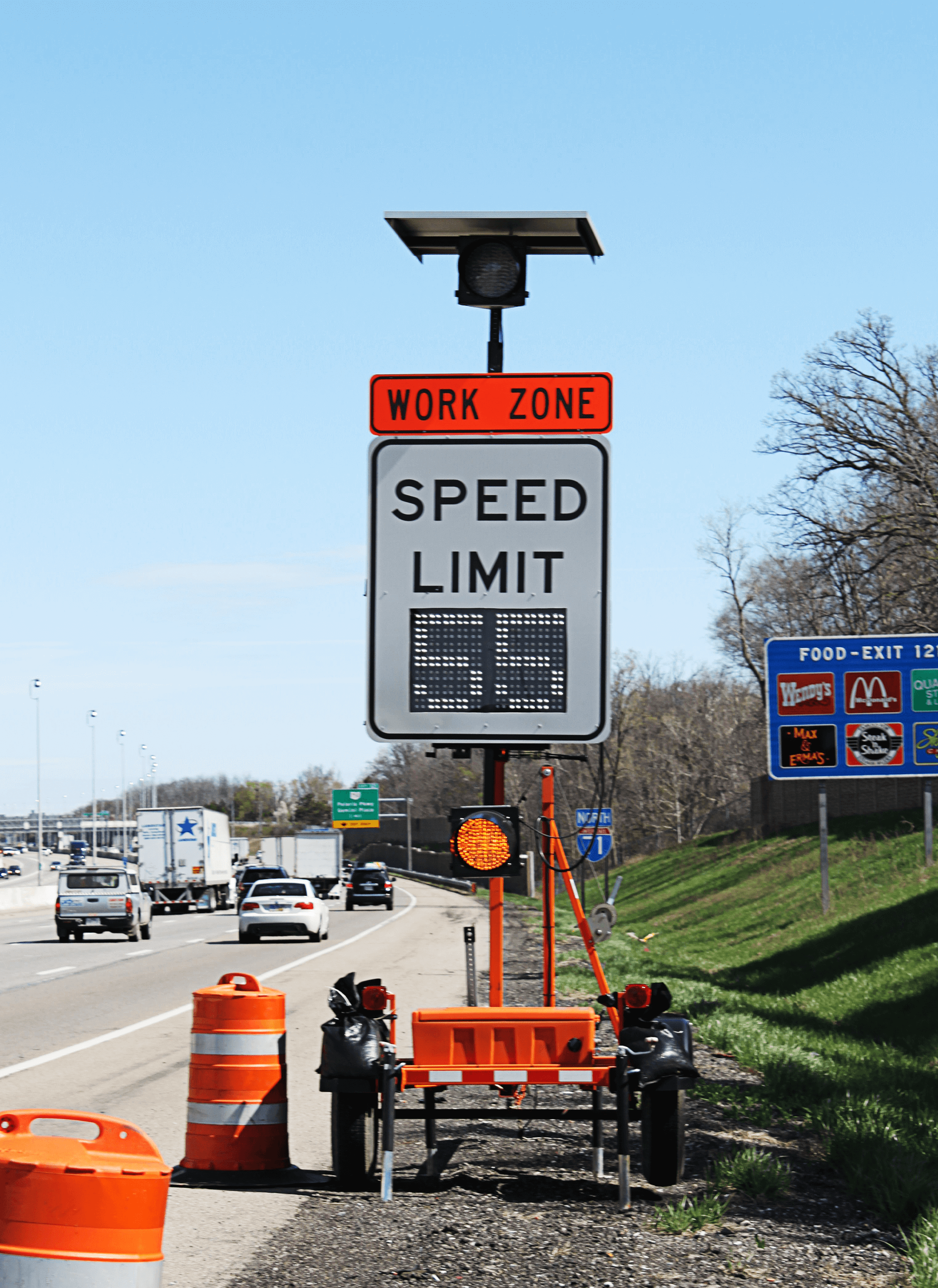

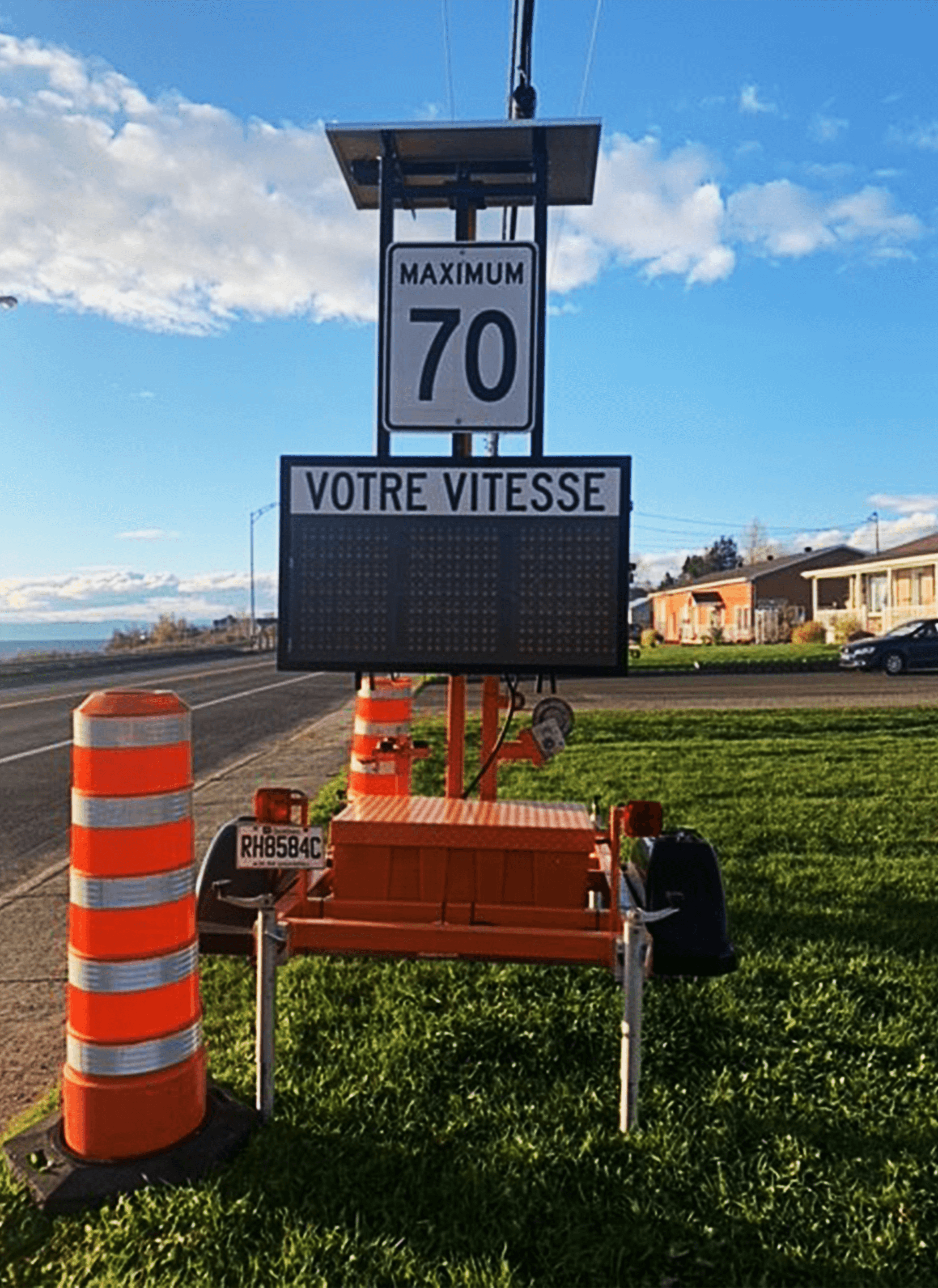

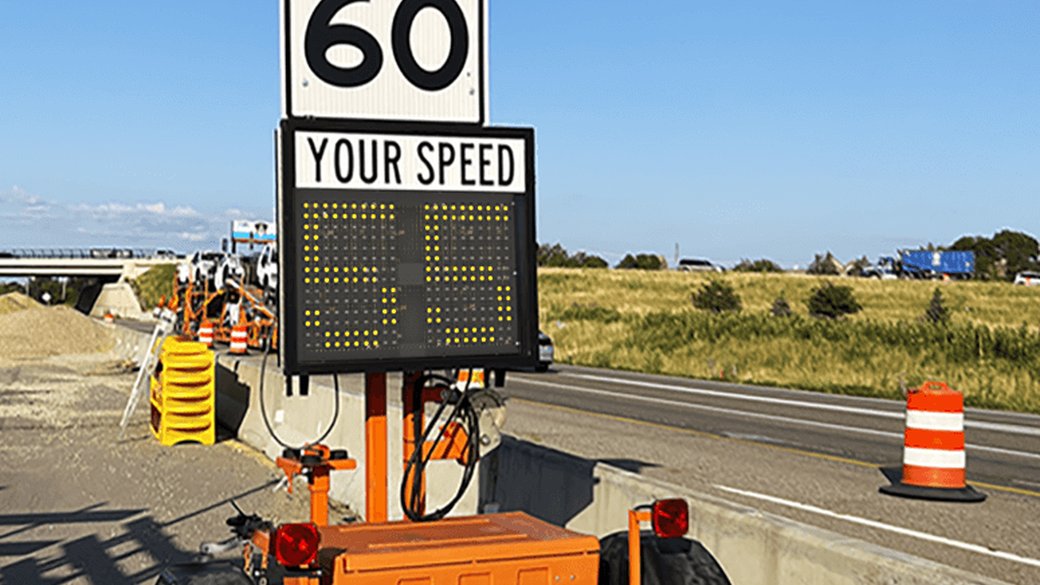

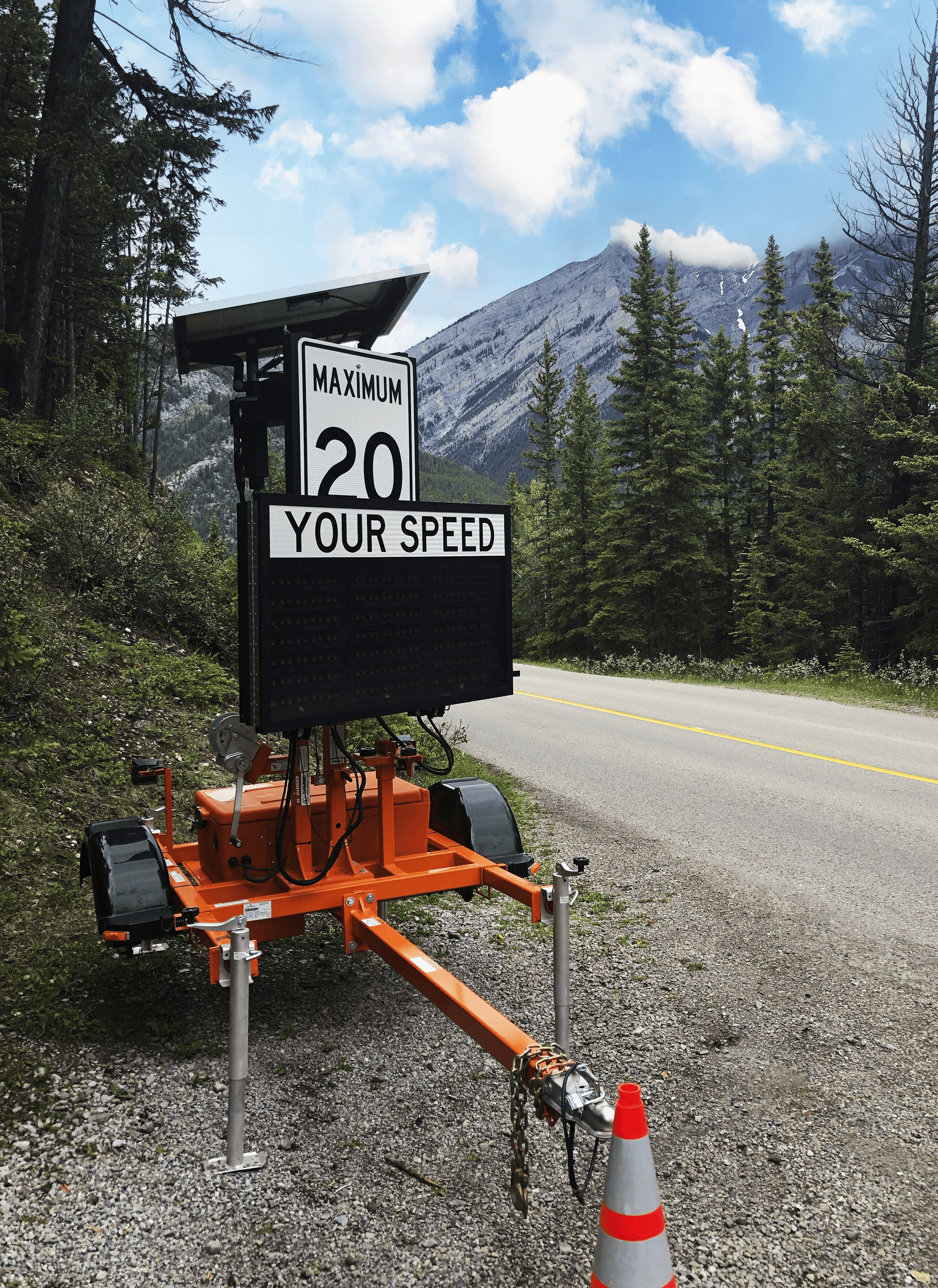

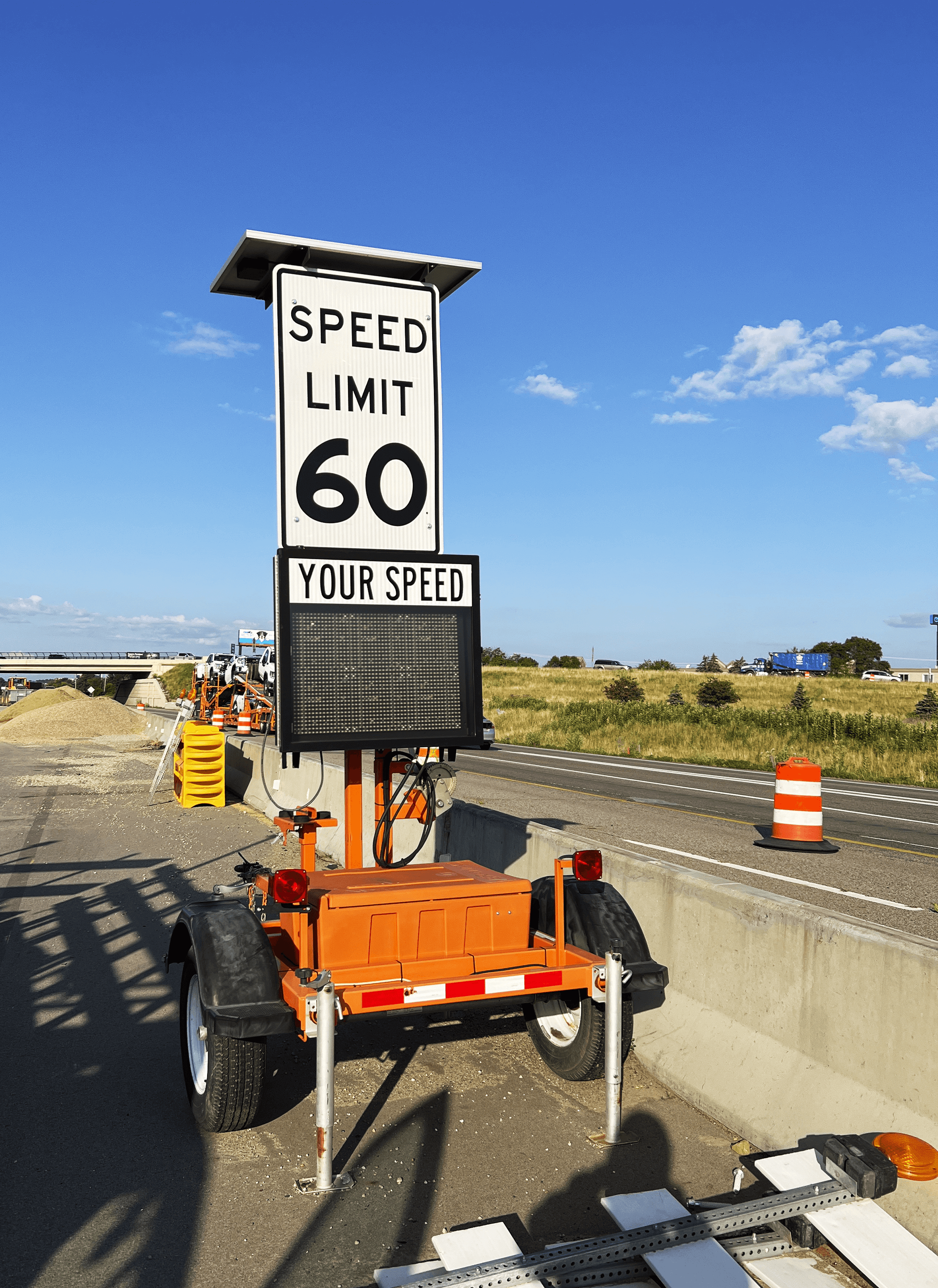

Trailer-Mounted Speed Feedback Sign

Stealth Technology for Batteries gives you peace of mind against equipment vandalism.

Safely hidden: our cleverly concealed battery compartment deters thieves from stealing batteries.

Maintenance-free: sealed batteries prevent equipment from shutting down due to lack of maintenance / having to add water.


Handheld

Intuitive Interface

• Touchscreen
• Easy to read
• Intuitive icons
• Backlit screen for nighttime use
• Quickly select speed parameters and blink option
• Black and white display screen with 3.75 in (95 mm)

Safe Handling

• Take the controller from the sign case to safely change speed parameters away from the trailer

Real-Time Information

• View speed display, battery voltage level and other key elements

Stealth Mode

• No speed is displayed, but data is collected*

*Requires data logger option

The Doppler radar measures oncoming traffic at a distance of up to 2000 ft away (610 m).

• Picks up average speed and vehicle count
• Up to 2 lanes / directional
• No calibration needed
• Integrated into the sign

High-Performance LED Lights

• To create bold and bright characters while using minimal energy

Solar Panel

• The standard battery/solar configuration is designed to run 12 months in most regions without manual recharging

• Superior Powder Coating Finish - Impact, humidity, salt spray and rust resistant
• 4 Adjustable Stabilizer Legs - For stabilization, easy deployment and transportation
• Tongue Wheel Jack - Easy and safe trailer set up
• Removable Tongue - Saves space for storage or location with tight space
• Manual Lift Mechanism - Robust winch for quick deployment
• 2-in. (51 mm) coupler or 3-in. (76 mm) pintle eye - For easy towing
• Heavy-Duty Plastic Fenders - For durability and easy replacement
• Rugged Rod Mast Brake - 240º rotation (15º increments)
• Diamond Plate Platform - For safe and easy maintenance

***MUTCD COMPLIANT SPEED TRAILER***

Equipped with a high-speed modem with GPS to monitor and collect data with JamLogic® automation.

All data is stored in JamLogic®. Run your own reports monthly, weekly, daily or custom, and export them to Excel.

JamLogic® allows you to have all the traffic data at your fingertips.

Our datalogger saves the average number of vehicles and the average speeds during a specific period of time (every minute, 10 minutes, hour, etc.).

With concrete data, it is easy to take action to reduce speeds during the critical time/day where speeding is an issue.

• Police (red & blue) LED flashing lights
• White LED strobe lights
• Yellow LED strobe lights

This unit is equipped with a modem and can be part of the Connected Work Zone Notification System. This system communicates essential work zone information via the Work Zone Data Exchange to motorists, Departments of Transportation, the Traffic Management Center and other relevant parties to make roads safer.
